Edemco Dryer Heating Element for F2002-2 Dryer

EdemcoSKU: ED-R125-2002-2
No reviews

Price:
Sale price$92.00

Estimated Shipping Widget will be displayed here! (with custom color)

Description

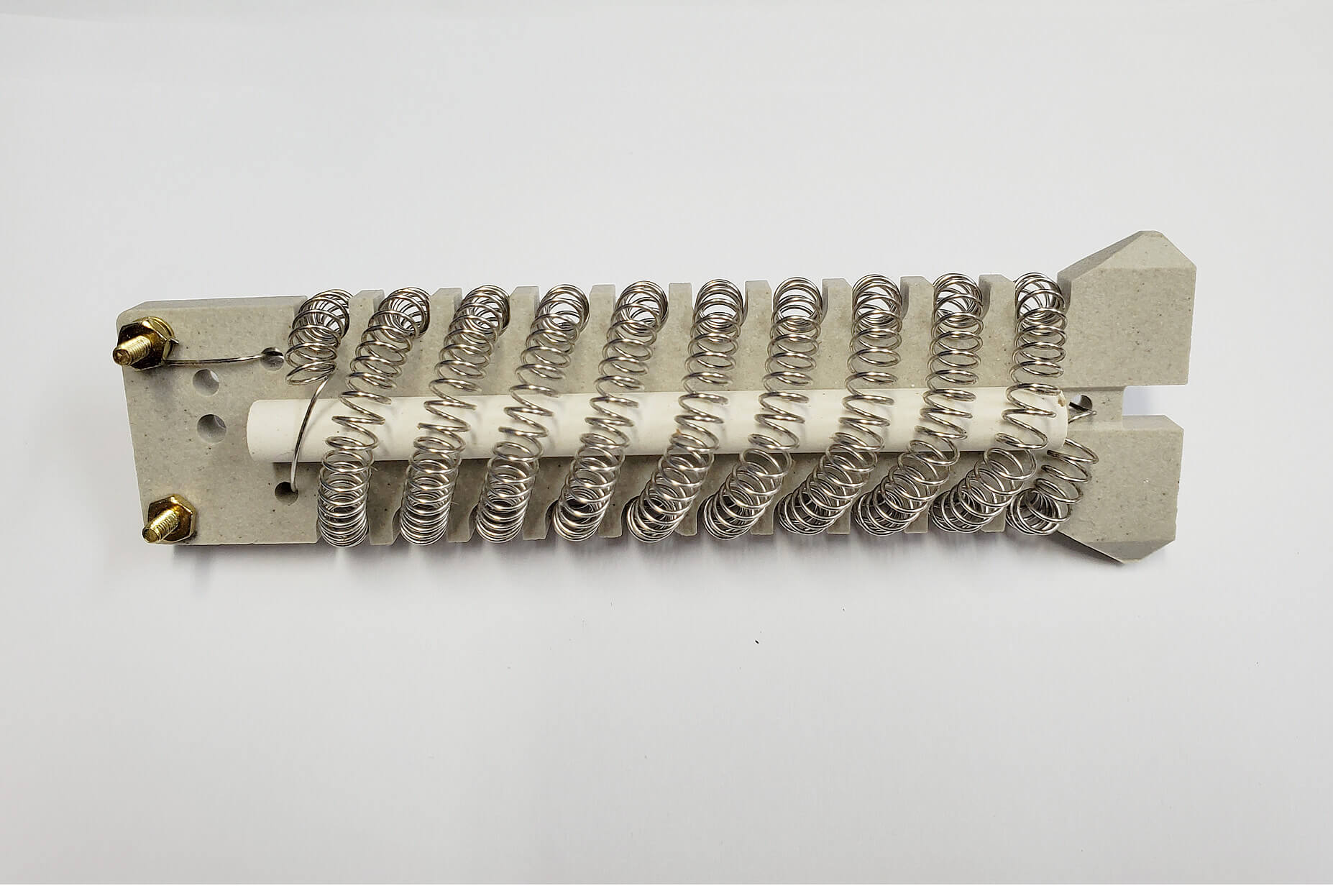

Heating elements for the R125-2002-2 Dryer has changed over the years, therefore your heating element may not look exectly like the one pictured, especially the older model Edemco dryers. If this heating element doesn't fit correctly in your dryer, you will need to drill a hole for the screw. The Edemco R2007 (R125-2002-2).

How to test your dryer for non working parts

If the dryer is not heating it does not mean the heating element is bad.

Heating Element and Thermostat:
The heating element and the thermostat can be tested with a continuity meter.

Pot Control:
The Pot Control can be tested with an ohm meter. Turned all the way up it should read between 200 – 250 ohms.

Triac and PC Board:
The Triac and PC Board take special machines to test them. Most of the time it will be the Triac that is bad. You can pull back the black plastic on the PC Board to see if the board looks burnt.

There are no guarantees since we do not have the parts to test them.

If you do replace the Triac, the wires do need to be soldered back on, not twisted with caps or tape. The Triac will also need to be screwed back down to the heat sink before testing the parts. If these instructions are not followed the Triac will arc and go out again.
