T&S 8" Wall Mount Easy Install Faucet, 6" Riser, Hose, Sprayer, Vac Breaker

A T&S 8" wall mounted faucet with "pop and lock" riser installation feature. The faucet is constructed from the finest materials, carefully inspected and undergo rigorous testing to ensure their durability and quality. Polished Chrome Finish. T&S delivers the finest in craftsmanship and service. Made in USA.

Specifications/Features:
- Construction: Stainless steel
- Overall Height: 27-1/2" high
- Sprayer: B-0107 (Grey/Stainless) spray valve
- Spring-action gooseneck: (lowers and raises by spring action)
- Faucet Water Ports: 8" wall mounted faucet with "pop and lock" riser installation feature
- Inlets: 1/2" NPT female eccentric flanged inlets (00AA)
- Riser: 6" riser model (144X)
- Vacuum Breaker: 4-3/16" height
- Sprayer Holder: Attached onto Riser (for sprayer while not in use)
- Hose: B-0044-H flexible 44" stainless steel hose
- Warranty: 1 year manufacturers warranty

- If your water pressure is 20 PSI - disperses 2.5 gallons water per minute
- If your water pressure is 40 PSI - disperses 3.8 gallons water per minute
- If your water pressure is 60 PSI - disperses 4.5 gallons water per minute

Installation Parts Kit: (Parts kit - B-0230K)
- View Photo & Specs of Parts
- 1/2" Supply Nipples
- Lock Nuts and Washers
- Male & Female Short Elbows

- View Faucet Specifications
- View Faucet Installation
- View Submittal Information
- View Sprayer Maintenance

The links shown just above shows the B-0163 with a 18" riser and 35-1/2 height. All other information except for the riser and height is correct. The riser and height for this faucet is noted just above as well.

VACUUM BREAKER: View Specification Sheet

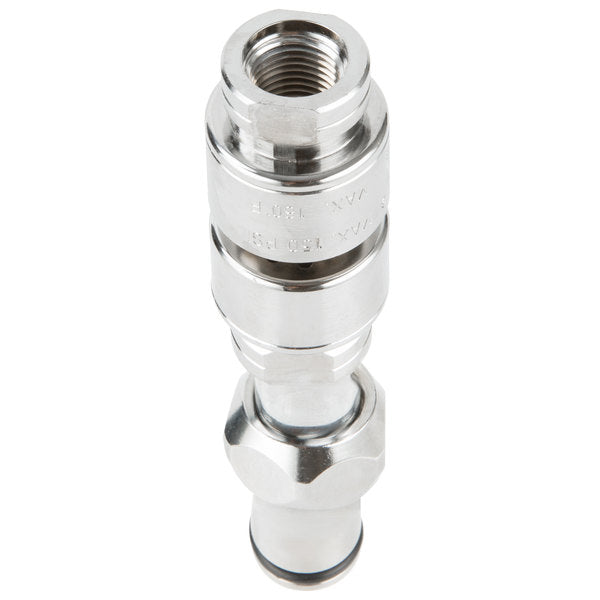

Keep your faucet working properly with the T&S B-0970-FEZ continuous atmospheric vacuum breaker! This vacuum breaker quickly installs onto the swivel section of your faucet base so that you can protect your faucet against back flow. Height is 4-3/16" which will add this much more height to the riser.

Vacuum Breaker Specifications:
- Construction: Polished chrome plated body
- Pressure: In-line 3/8" continuous pressure
- Inlet/Outlet: 3/8" NPT female Inlet and outlet
- Installation: EasyInstall quick installation inlet for standard T&S swivel faucet
- Contamination: Design prevents back siphonage of contaminated water
- Material: Polished chrome plated brass body and riser
-Feature: Continuous Pressure VB

Vacuum Breaker Certifications:
- NSF/ANSI 61
- ASME A112.18.1 / CSA B125.1
- Low Lead Content (0.25% Max)
- Commonwealth of Massachusetts
- BAA/ARRA
- NSF/ANSI 372 (Lead Content)
